Completed in the NetherlandsWith separate toilet roomPreparation + finished result
114.5 × 314 cm
Bathroom plan 114.5 × 314 cm with separate toilet — project P12
Documented project: Narrow long bathroom with two toilet layouts
A narrow floor plan with a bathroom and two separate toilet arrangements.
Not a 3D concept: a documented Jodo reference project with real project images.
- Internal dimensions
- 114.5 × 314 cm
- Room type
- Bathroom with toilet
- Source
- Jodo · 2026
REALBUILD · P12
Public project video
See the real project before you choose a plan.
What is in this bathroom?
- Narrow and long
- Shower
- Two toilets
- Many drawings
114.5 × 314 cm
Does this layout fit your room?
Use the 114.5 × 314 cm internal dimensions as your first comparison point. This is a real reference layout, not a custom design for your room.
Different dimensions? Compare all plans- Measure the finished internal dimensions from wall to wall
- Compare the door swing, windows and fixed obstacles
- Have pipework, connections and construction checked by your installer

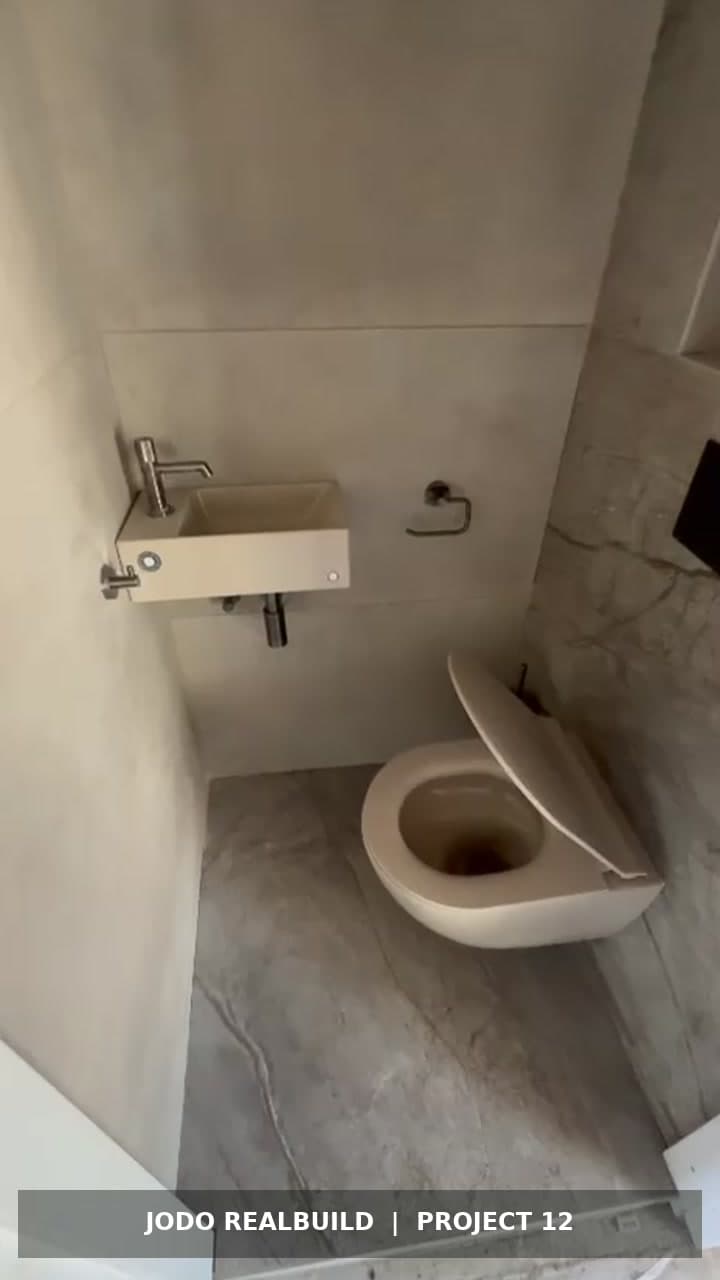

Separate toilet room
Ground-floor toilet
99 × 109 cmContents: Basin
REALBUILD · P12
What you receive with your project choice
One payment opens the full verified library immediately. Compare every available project for up to seven days and only then choose the complete package you want.
- Mobile plan and A3 execution dossier
- Preparation and finished-result project videos
- Seven days of library access and one project choice
JODO REALBUILD
Clear answers before you choose
Can I choose the project shown on this page?
Yes. This project is available as your one project choice. Payment first opens the complete library, so you can compare it with every other available layout before confirming.
Is this a custom design for my room?
No. This is a documented Jodo reference layout. Always check doors, connections, construction and local requirements for your own room.
What do I receive after choosing?
You receive the mobile plan, the A3 execution dossier and the available project videos for the project you choose, on screen and by email.
When does library access end?
You can compare for up to 7 days. Confirming one project completes the comparison period and makes that complete project package available on screen and by email.
Source document 2026
Original execution costs — not the price of this plan
Documented amounts including VAT from the original Jodo project. They are not a quotation for your bathroom or a final invoice. Your costs may differ because of materials, location, the existing situation, pipework, demolition and additional work.
- Materials
- €13,000
- Installation
- €16,000
- Documented total
- €29,000
